VCM200 4K智能AI視訊會議攝影機

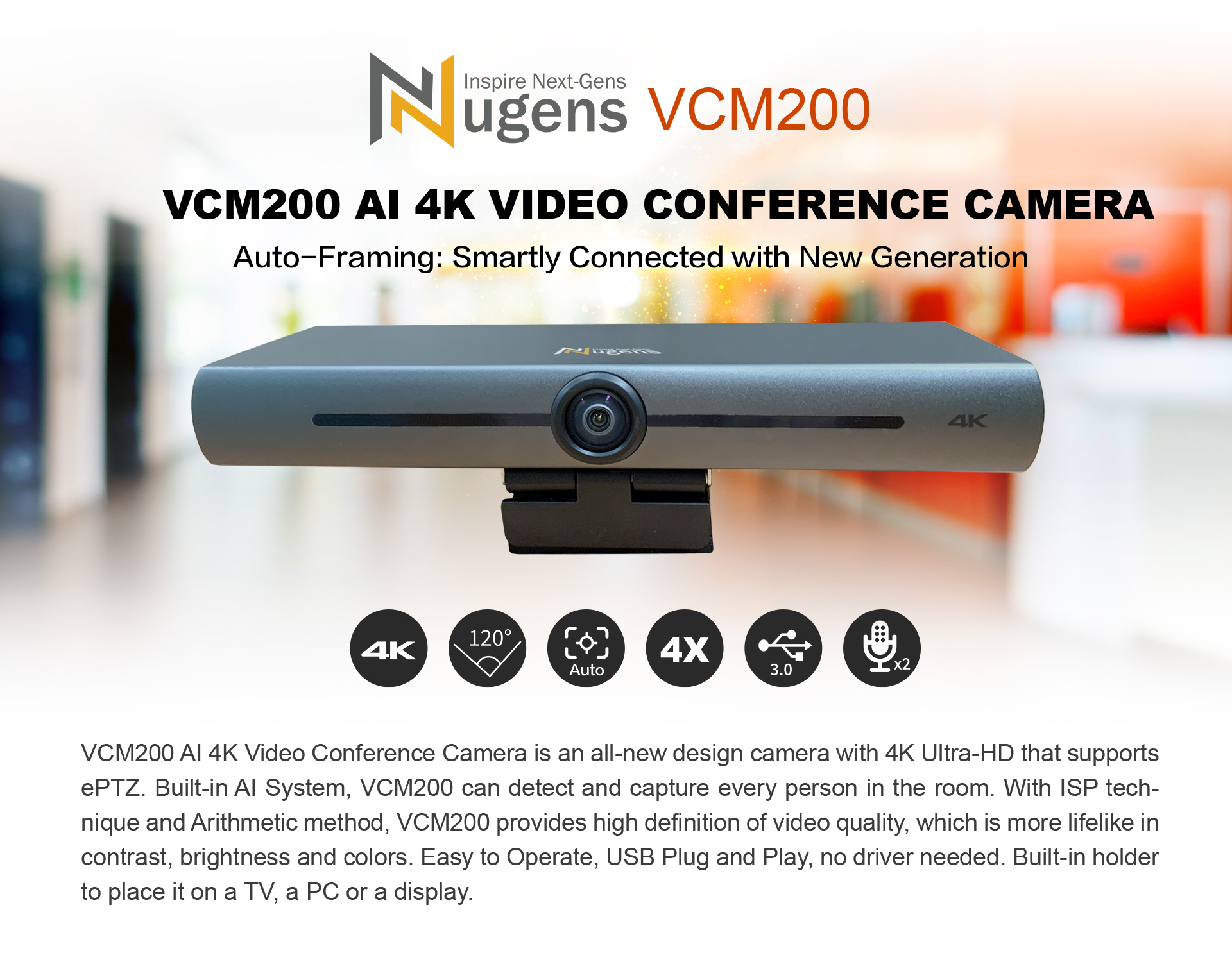

Nugens VCM200

AI 4K Video Conference Camera

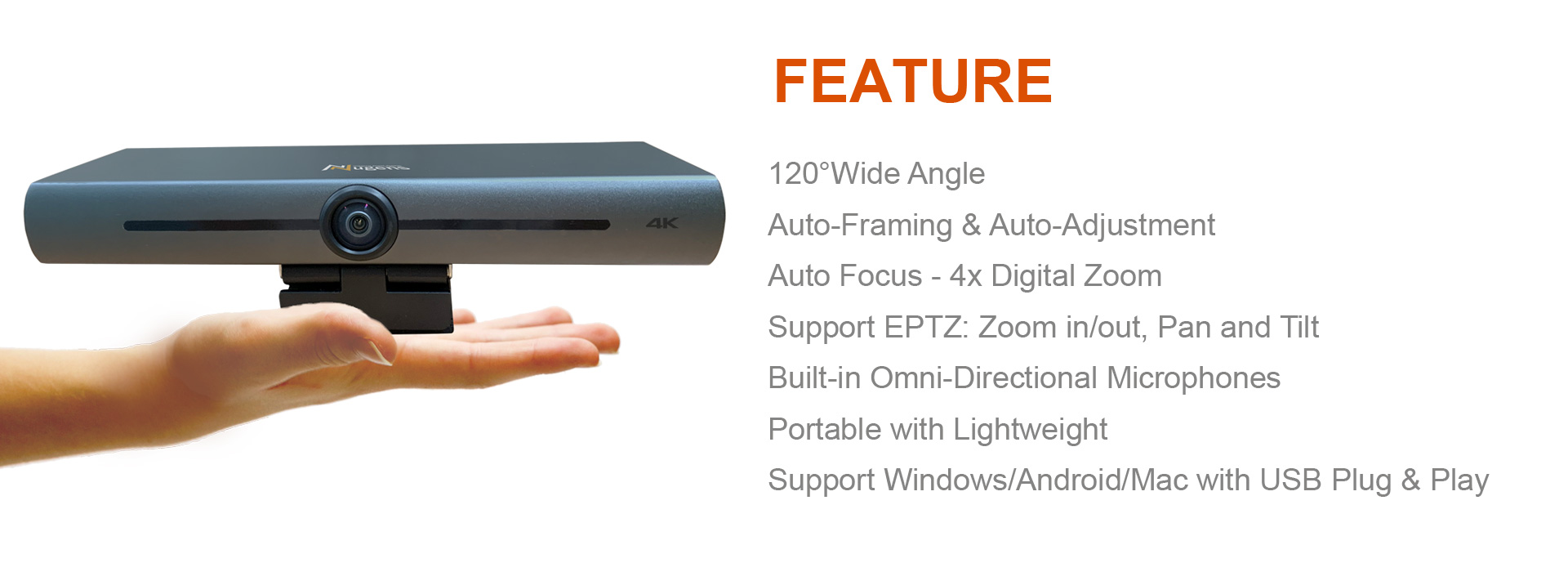

Auto-Framing: Smartly Connected with New Generation.

  • 120° Wide Angle

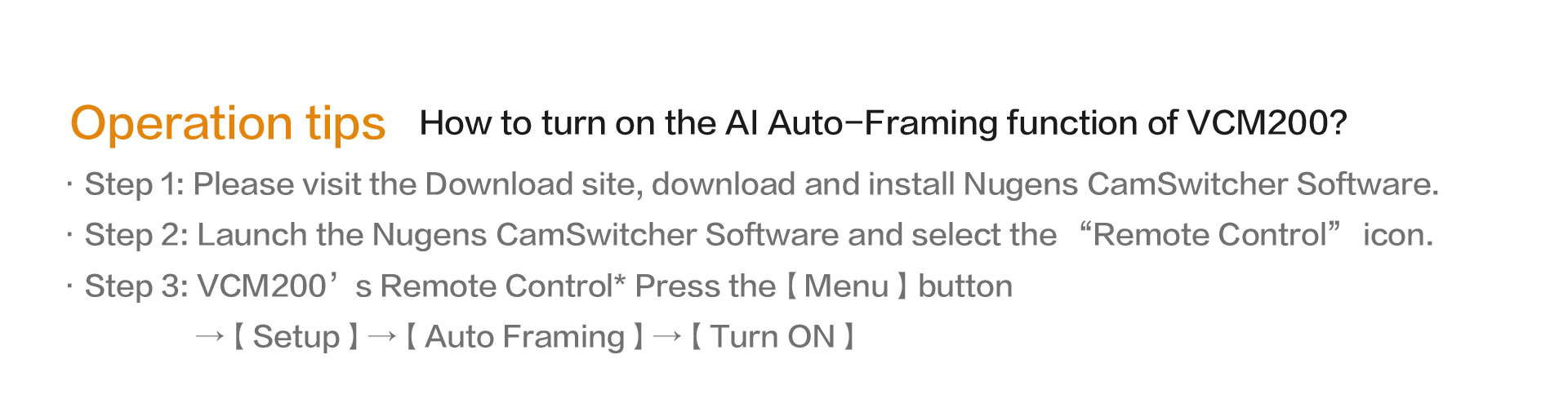

  • Auto-Framing & Auto-Adjustment.
  • Auto Focus - 4x Digital Zoom

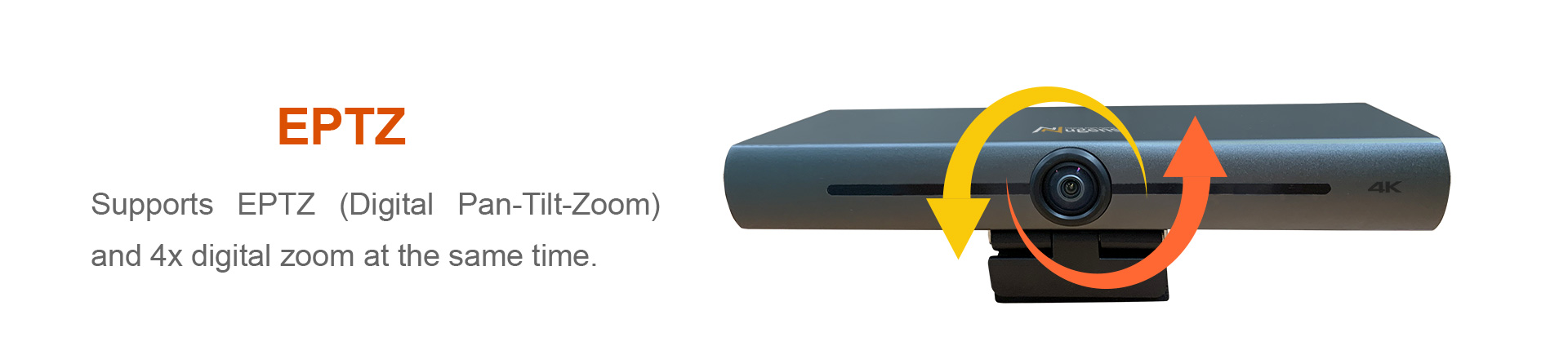

  • Support EPTZ: Zoom in/out, Pan and Tilt

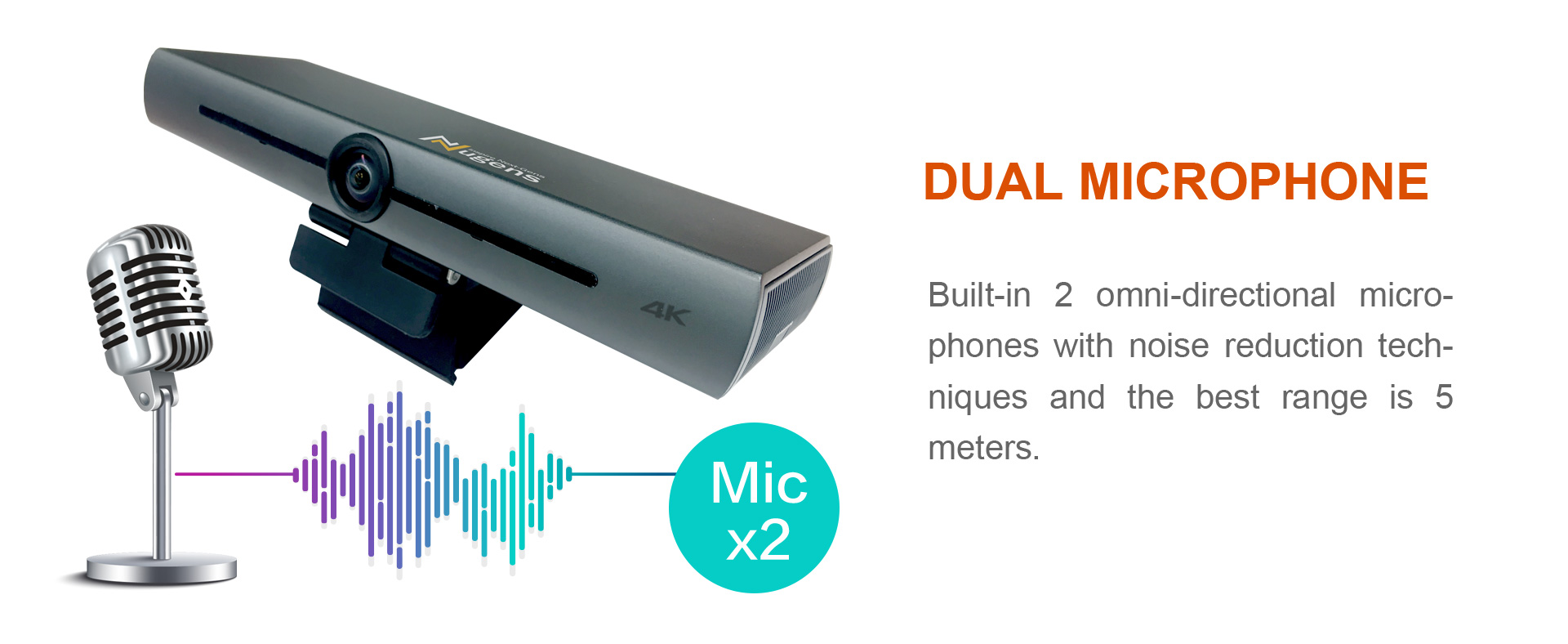

  • Built-in Omni-Directional Microphones
  • Portable with Lightweight
  • Support Windows/Android/Mac with USB Plug & Play.
AI 4K Video Conference Camera

Powerful and Complete

Snapshot / Video Recording / Livestream / Conference / Whiteboard / Document Camera
e-Learning / Conferencing / Video Tutorial / Live Stream / e-Education

  • Large preview window with user-friendly graphical interface.
  • Able to choose preferred resolution for preview and settings – Support 4K Ultra-HD
  • Capture HD images, HD videos, Time-Lapse, Picture-in-Picture and Burst.
  • Time-Lapse Comparison, Annotation and Animated Title
  • Support RTMP Live Stream (YouTube or Facebook)
  • Built-in Whiteboard and Blackboard
  • Support Screen-Sharing and Virtual Camera
  • Supported Operating System | Windows and macOS



Image Sensor 1/2.5 Inch High-Quality 4K CMOS Sensor
Effective Pixels 8.28MP 16:9

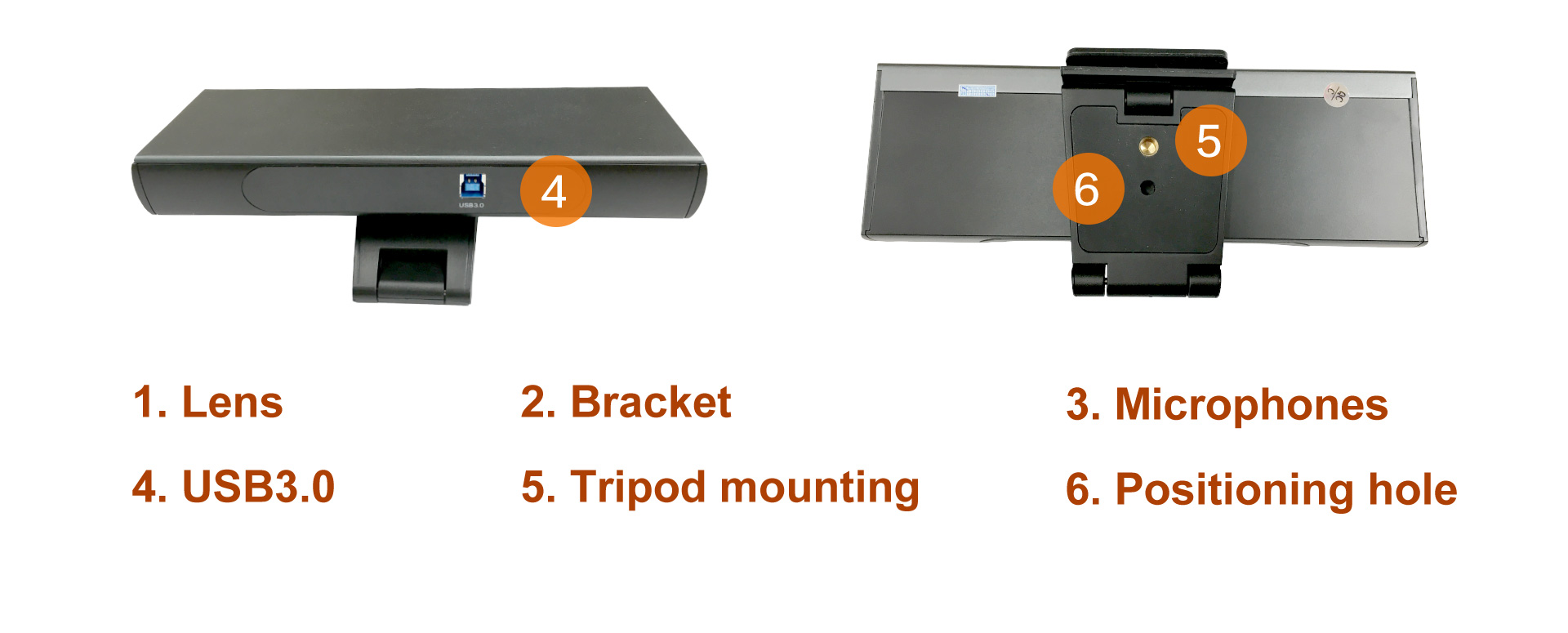

Video output port 1* USB3.0, Type B, support audio output over USB3.0
Audio input 2 built-in MIC pickups
Video Format Mainstream:
View Angle 126°(D)/120°(H)/85°(V)
Lens f=2.72mm
Aperture F2.5
Digital zoom 4X
Min Illumination 0.1Lux(F1.8,AGC ON)
Ultra-low illumination On/off
White Balance Auto / Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K
Focus Auto / Manual/ One push Focus (available on AM series)
Exposure Auto / Manual
Auto framing On/off/sensitivity
Backlight compensation On/off
Dual stream On/off
SNR ≧50B

USB Feature

Operation Systems Windows 7(1080p at the most), Windows 8.1, Windows 10 ; macOS™ 10.10 or higher, Linux (Require to support UVC.)
Video Compression format YUY2、MJPG、H.264、H.265
Audio over USB3.0 Support
USB communication protocol UVC、UAC
PTZ control Support EPTZ
Hardware requirement 2.4 GHz Intel@ Core 2 Duo processor or higher,2GB RAM or more,USB 2.0 /USB3.0 port (USB 3.0 is needed for 4K)

Other Parameters

Input Voltage 5V
Input Current 1A(Max.)
Power consumption 5W(max)
Store Temperature -10℃~+60℃
Store Humidity 20%~90%
Working Temperature -10℃~+50℃
Working Humidity 20%~80%

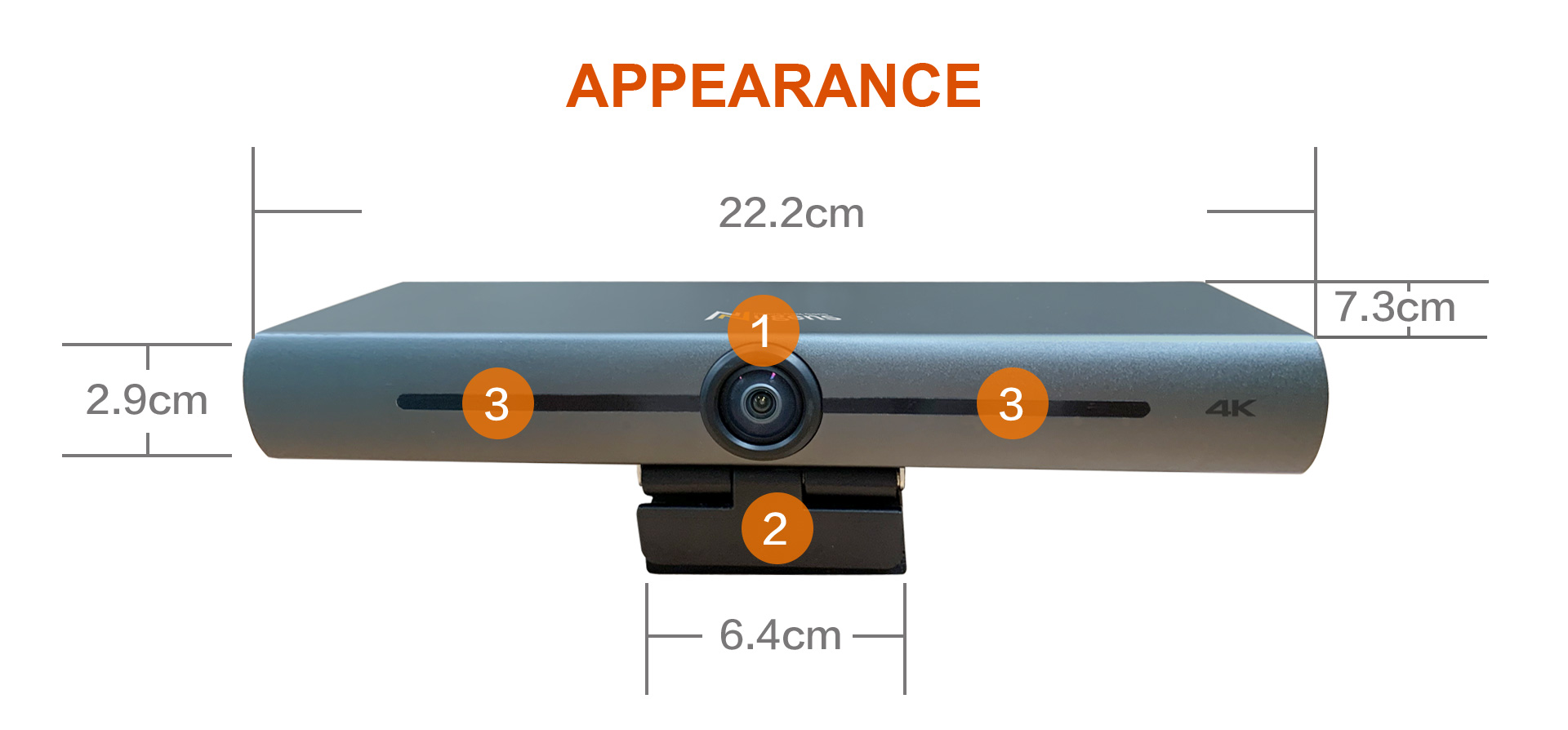

Dimension(W*H*D) 222mm x 93.25mm x 56.5mm
Weight 0.53kg
Application Indoor

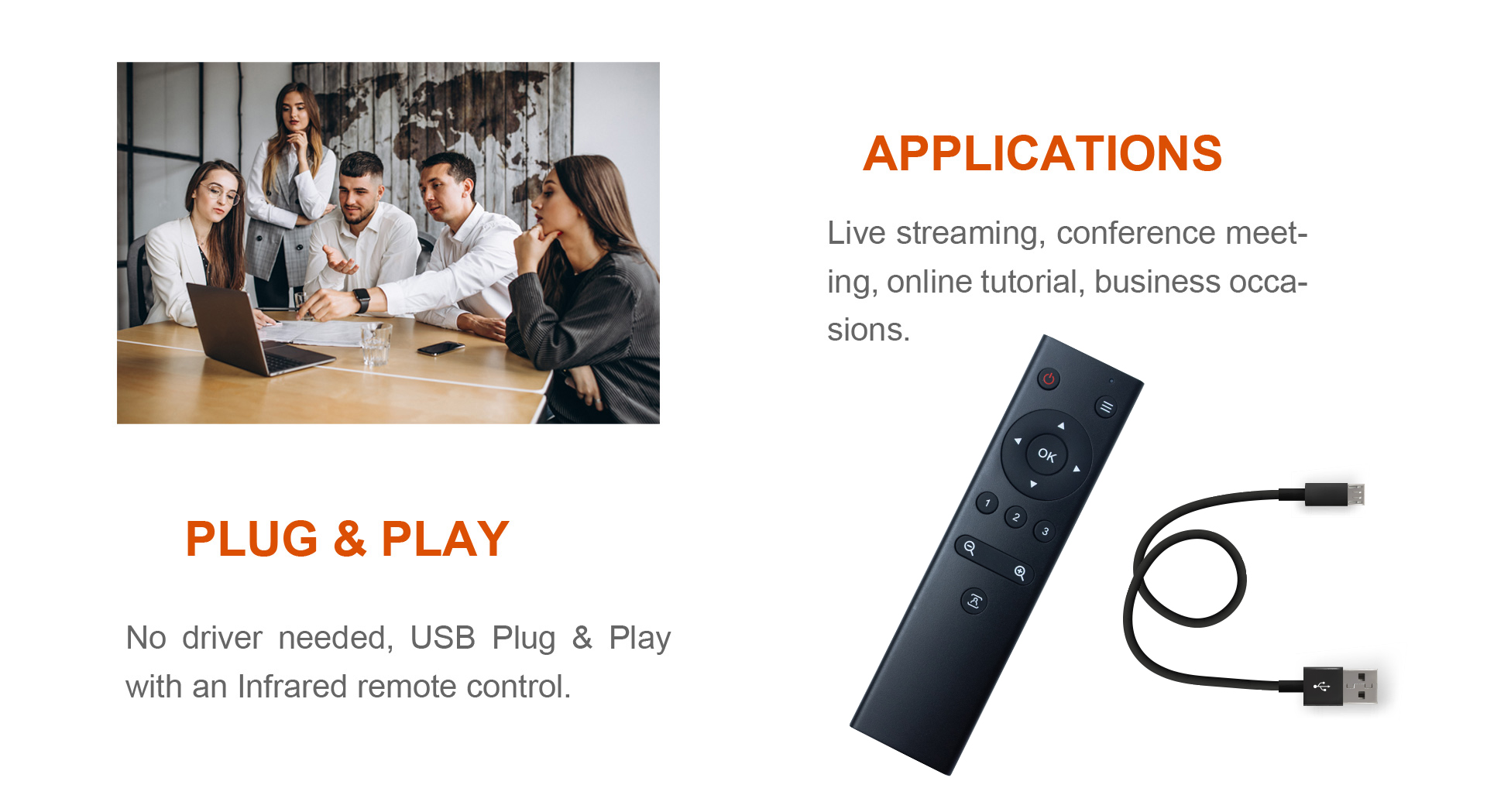

Accessory User Manual; Warranty card, remote controller, USB3.0 cable
