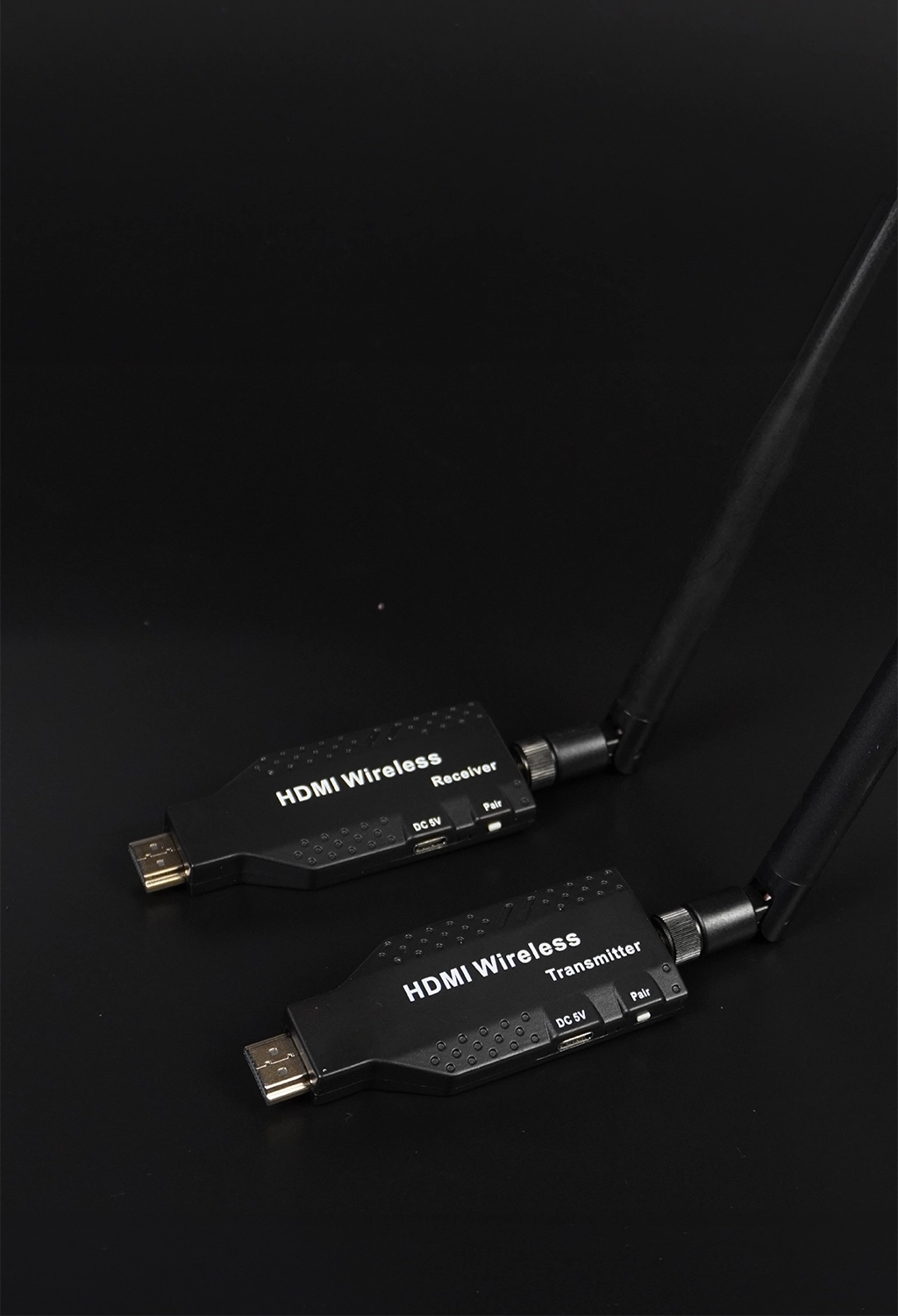

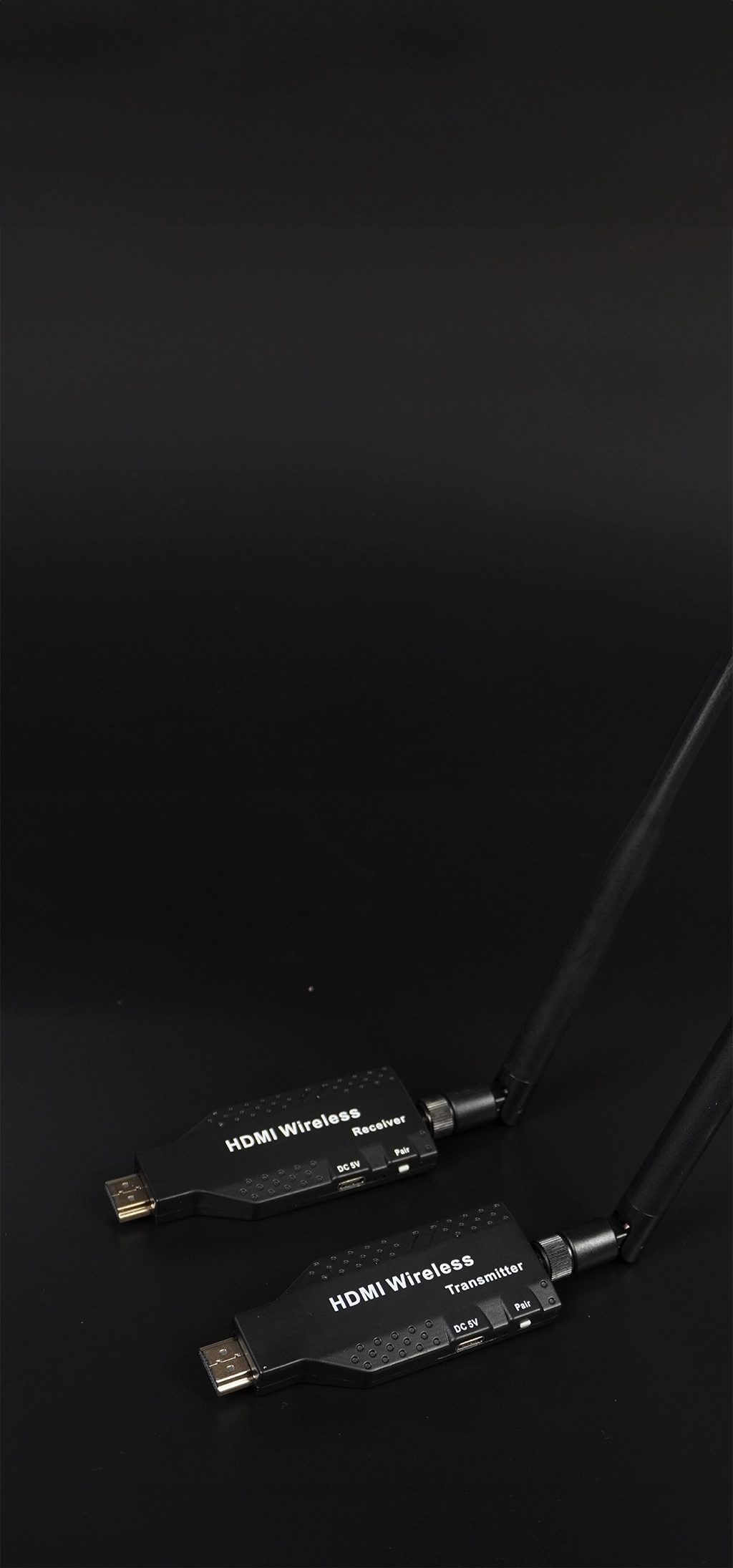

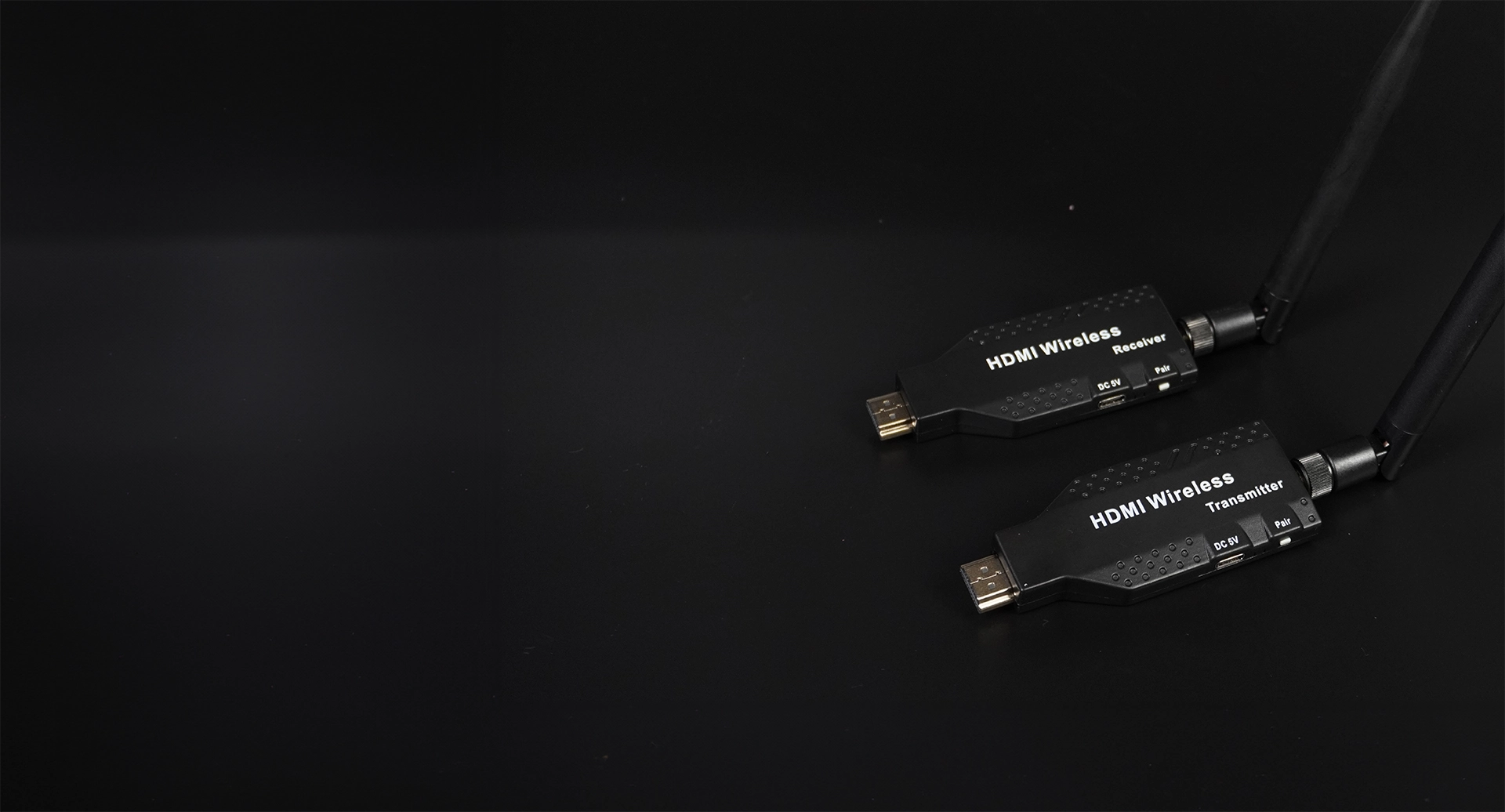

Nugens NW-200TR-50
HDMI Dongle Wireless Extender
Plug and play, no driver required
Wireless Amplified Audio-Visual Entertainment Experience
Project audio and video from HDMI output devices to large TVs or projectors wirelessly via HDMI, compatible with laptops, desktops, and set-top boxes.
High-Speed
Point-to-Point
HDMI Wireless Transmission Technology
Plug and play, no software or network setup required. Automatic connection for instant projection. High-speed transmission with low latency, easy to use indoors or outdoors.
*Please note: This device is not waterproof.

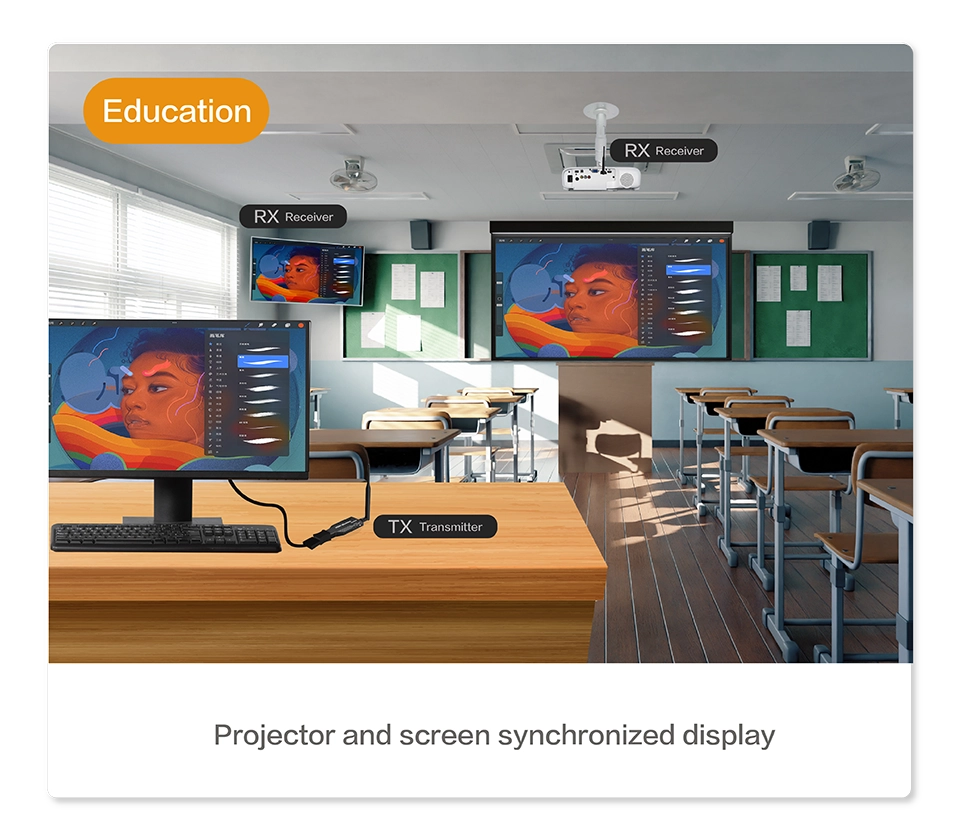

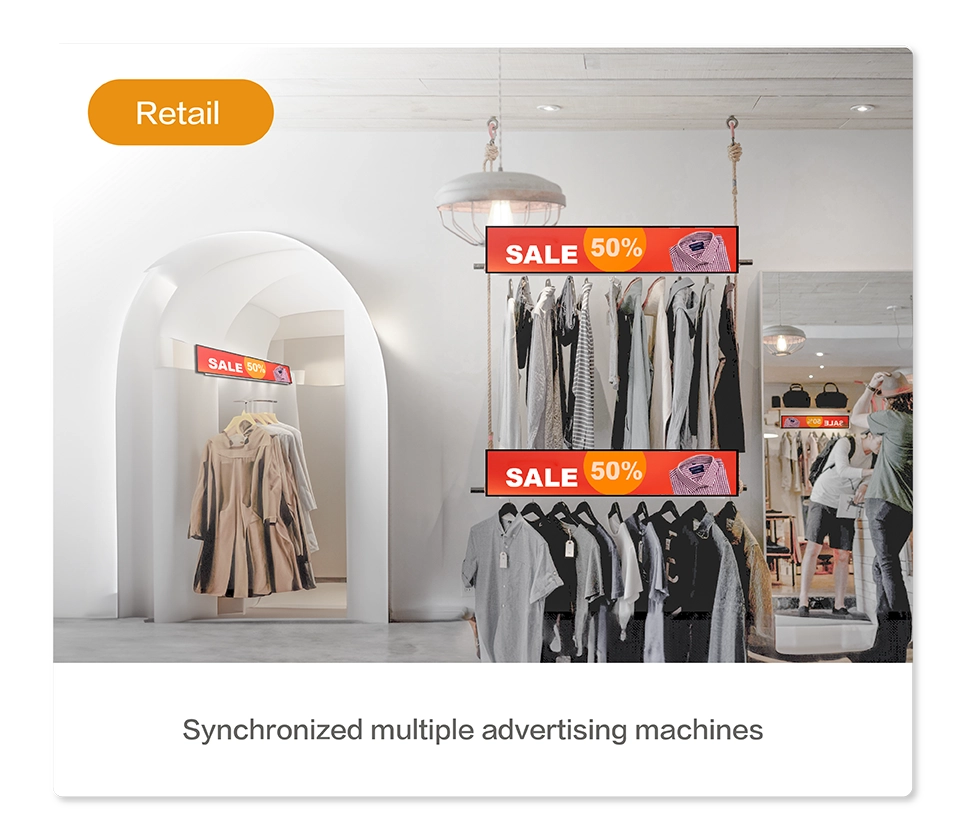

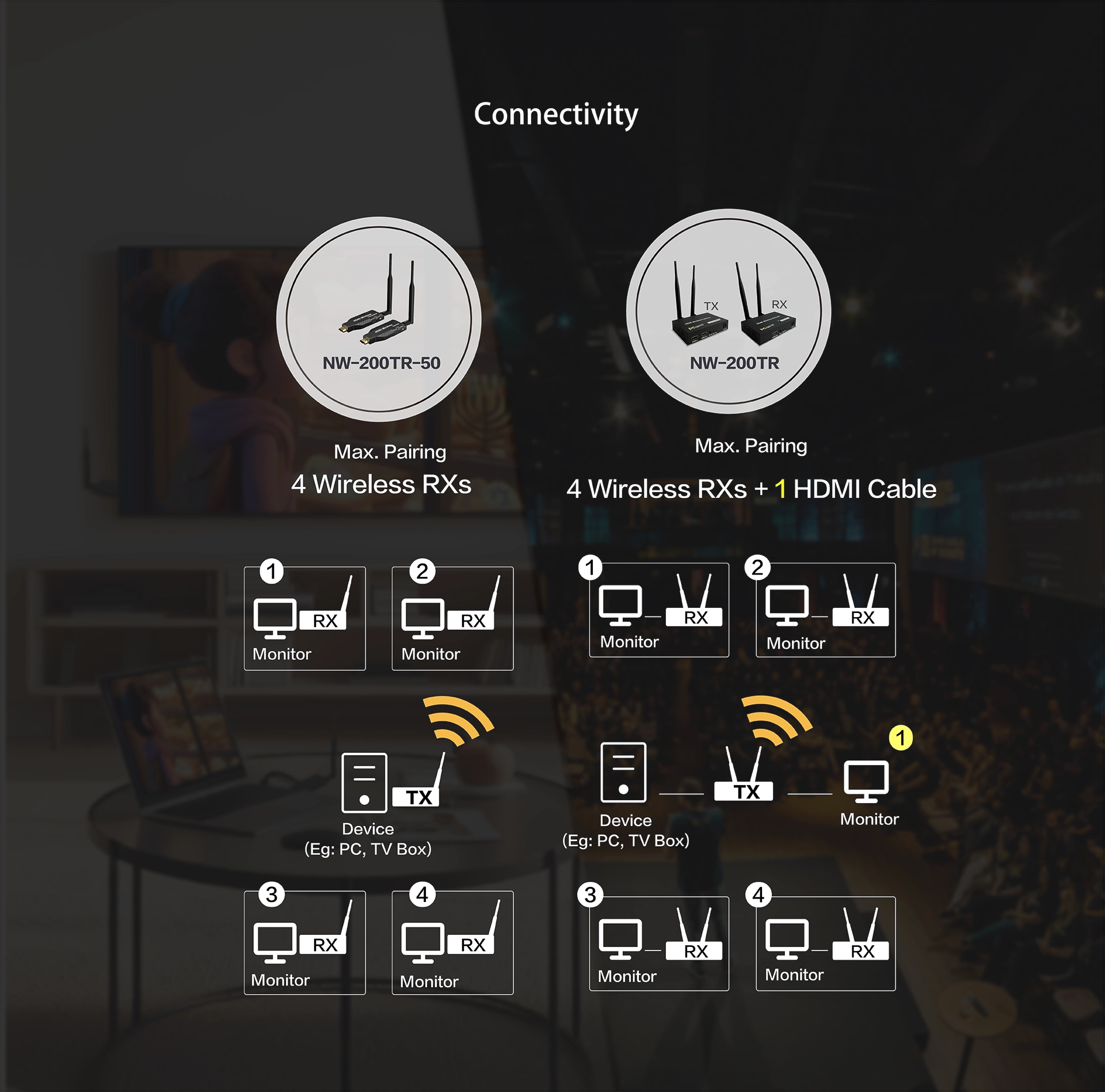

Optional Wireless Synchronized Display

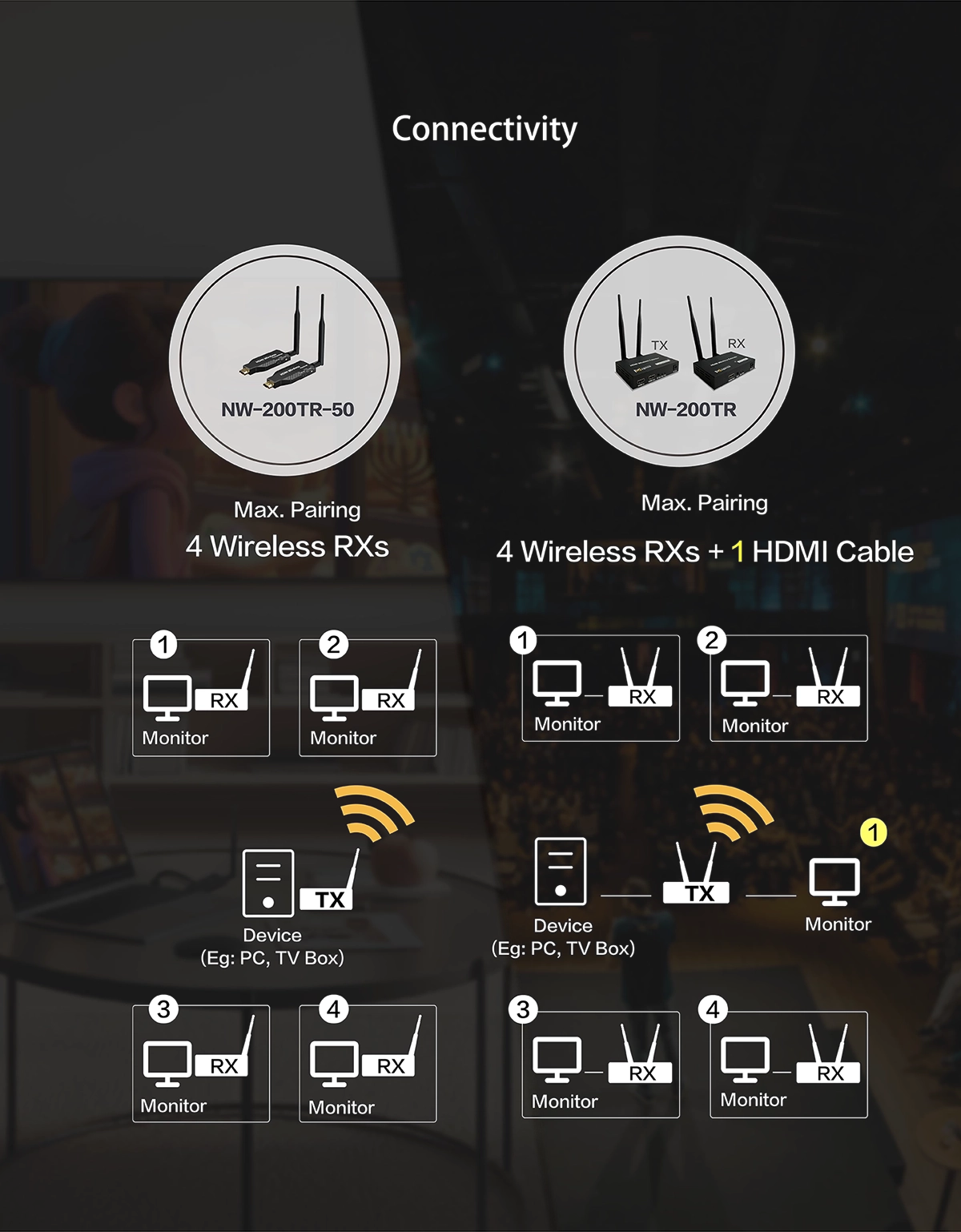

One TX (transmitter) can pair with up to four RX (receivers). Each set includes one TX and one RX. Purchase additional RX units if needed.
Unrestricted User Experience
Wireless transmission distance up to 50 meters. Both the transmitter and receiver can be powered by DC 5V/1A, compatible with standard power banks or USB 3.0 ports. No additional installation required, significantly enhancing convenience and flexibility.
Wireless High-Definition Audio-Visual
Transmission for Various Applications
Featuring the latest high-speed transmission chip, ultra-low latency, and low power consumption. Enjoy uninterrupted streaming and viewing. Supports 1080P @ 60Hz, delivering detailed images and smooth audio, perfect for entertainment, business presentations, and more.
Compact and Easy to Install
Ultra-lightweight design, as small as a mobile phone, suitable for indoor and outdoor use, business trips, and more. Enjoy visual and audio projection anytime, anywhere, for both work and leisure.
Specifications
Video
| HDMI/HDCP version | HDMI V1.3 / HDCP V1.2 |
| Compressed format | H.265 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps |
| Resolution | 1920X1080@60Hz (Max.) |
| Connector | HDMI-A |
| Impedance | 100Ω |
| Recommend HDMI/Maximum input/output range | Less than 3m when 1920 X 1080 @ 60 Hz |
WIFI
| Radio frequency power | 13dbm |
| Wireless | 802.11ac |
| Signal direction | Unidirectional |
| Radio frequency | 5.8GHz |
| Best Transmission Range | 50m |
Others
| Power Supply | DC 12V/1A |
| Power | Transmitter/Receiver Max. 5W |
| Working Temp. | -5°C ~ 70°C |
| Working Humidity | 5% ~ 90% |
| Product Material | PVC |
| Product Size | 117X82X25(mm) |
| Product Net Weight | 80g (included TX+RX+Antenna) |
| TELEC | 219-248047 |
| NCC | CCAJ22LP3A60T2 |
| Package Contents |
HDMI Transmitter x 1 HDMI Receiver x 1 Antenna x 2 Type-C Power Cable x 2 HDMI Male to Female Cable x 2 HDMI Female to Female Adapter x 1 Quick Installation Guide x 1 |
