20X PTZ Auto Tracking Optical Camera
AI Humanoid Tracking, USB/HDMI Plug and Play
AI Human Tracking
Built-in high-speed processor as well as the use of exclusive advanced image processing and analysis algorithms, the user can choose real-time tracking and area tracking according to the use of the environment.
USB Plug & Play without Complicated Settings
The VCM20A is designed to be quick to use and easy to operate. You only need to connect it to a computer, and it will start tracking and functioning.

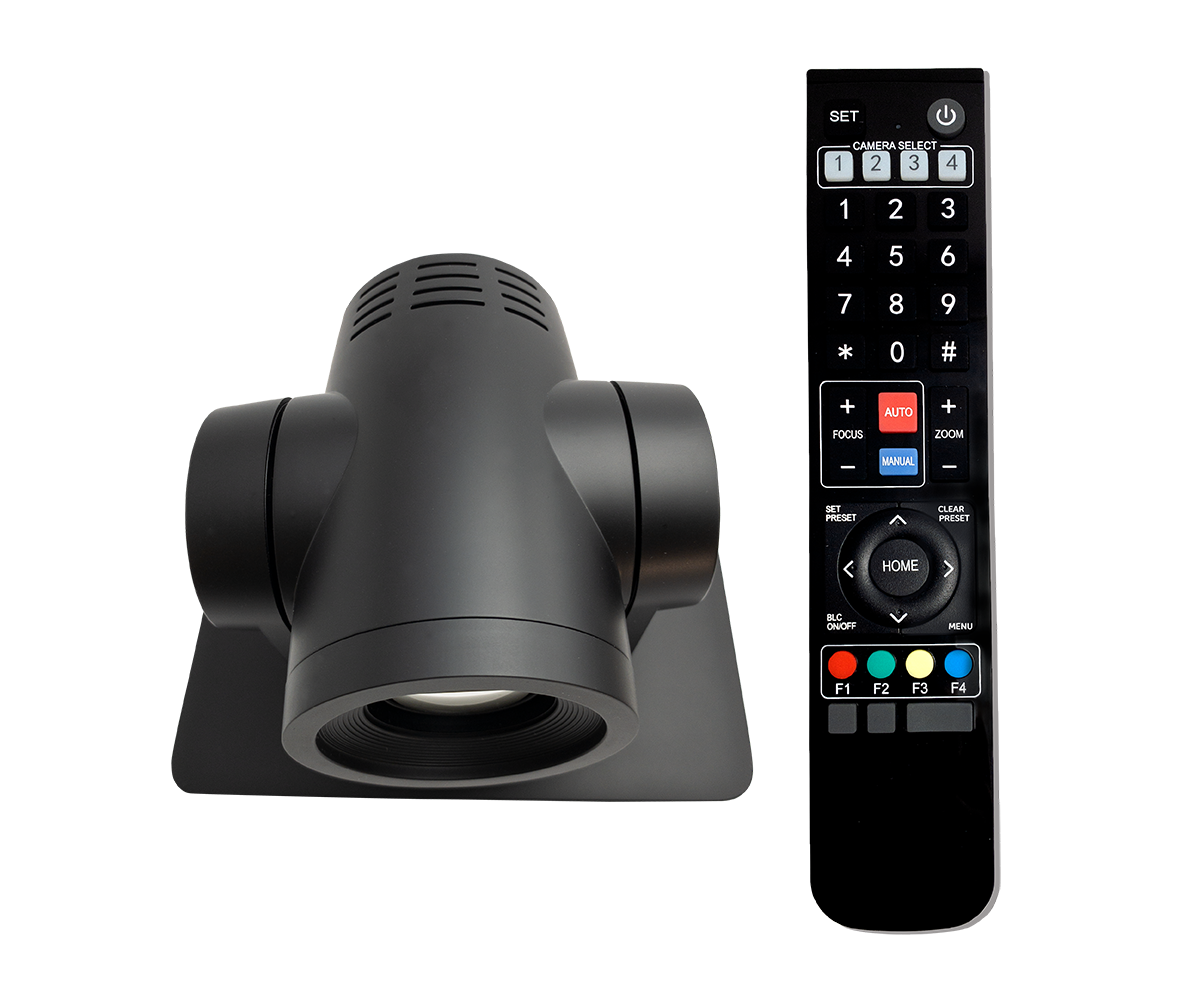

ON/OFF Tracking Function
with Remote Controller
A remote control is included, and the tracking function can be turned on or off in the Menu, which is intuitive and convenient to operate.
Support Advanced Settings
for Advanced Users

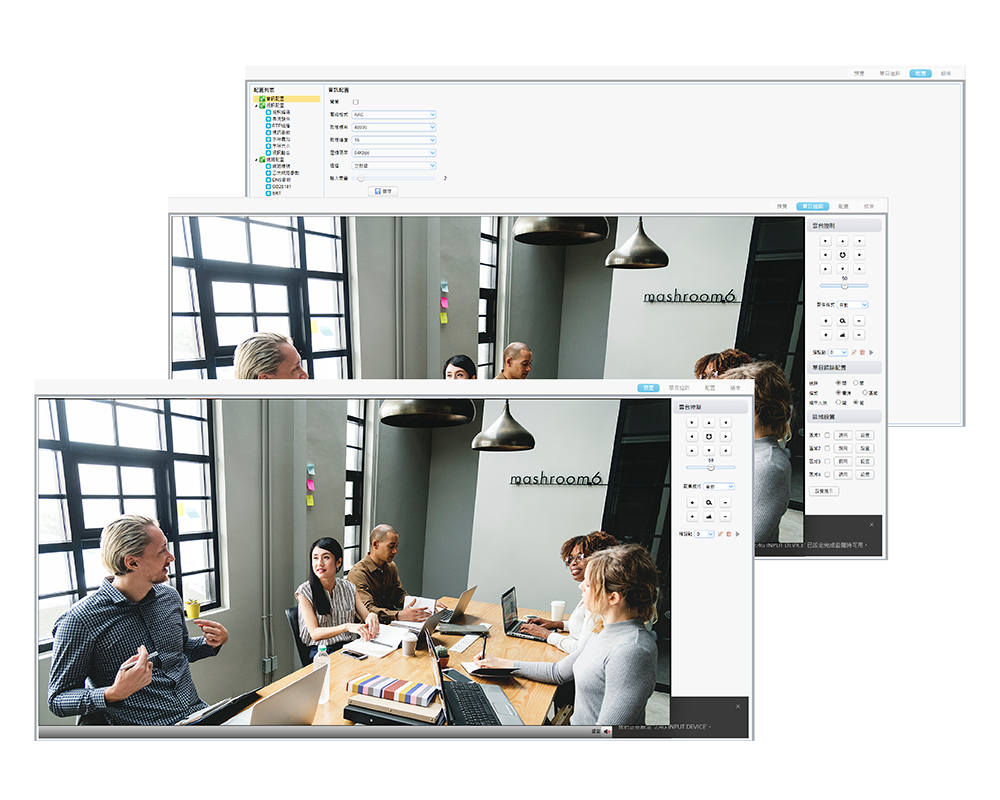

Apart from easy to use for the basic users, VCM20A can also satisfy advanced users at the same time. Provide advanced settings and functions, allowing advanced users to customize the tracking range according to different needs, to meet the diverse needs that arise in different scenarios.

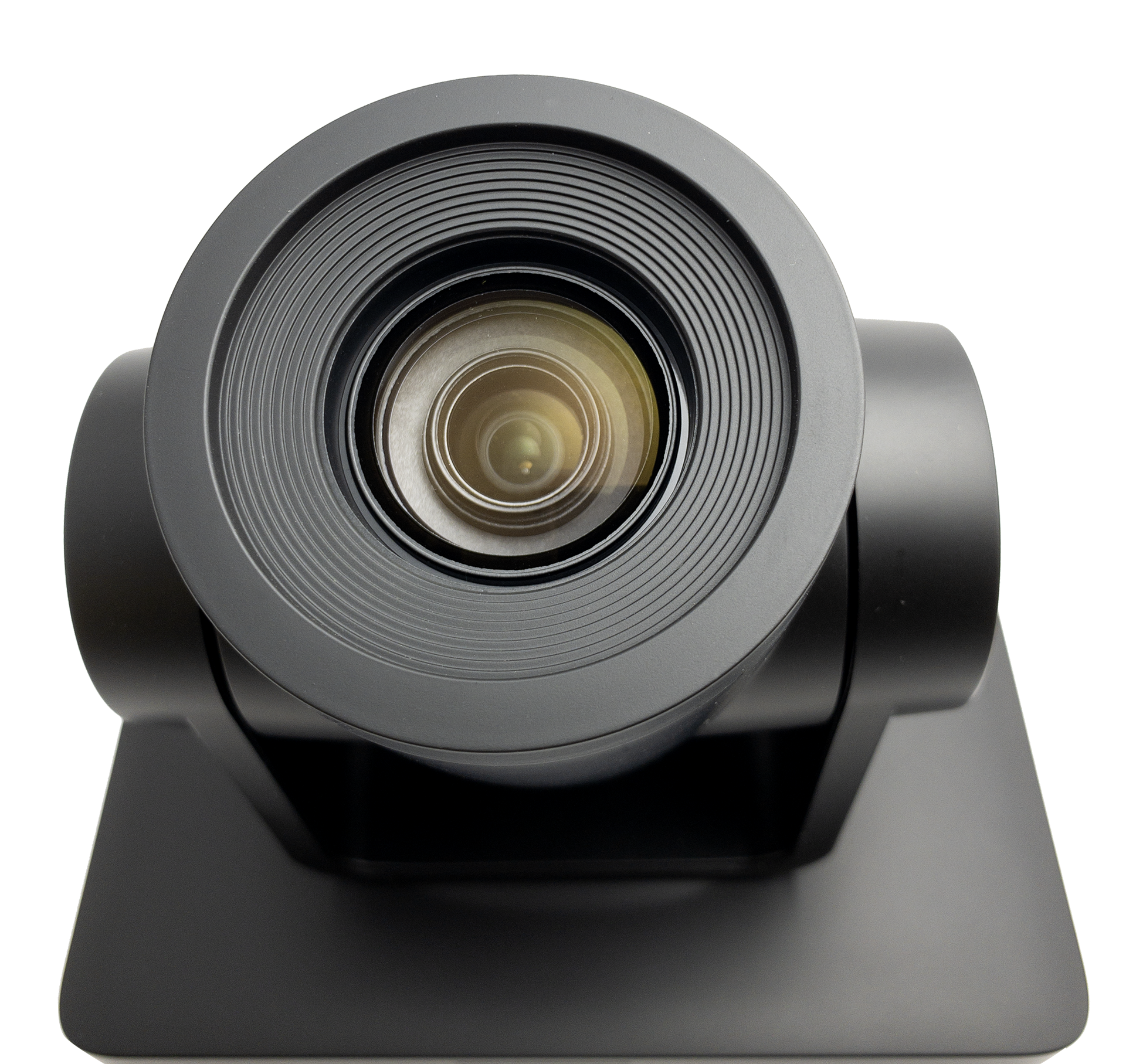

Built-in High Magnification
Optical Zoom Lens
20x HD optical zoom with rapid auto focus to capture every single detail, 2 million high resolution 56° wide-angled lens.
Preset Position - Quick
You can customize and preset 10 positions of camera presets in different directions. When speaking in a multi-person conference or event, you can quickly switch to the position or angle, and with the Zoom In/Out of the lens to make the picture extra vivid.
Top Sensor, Present High-Quality Images
With a 1/2.8-inch 2.07-megapixel high-quality CMOS image sensor, the maximum resolution can reach 1920 × 1080, and the output frame rate is up to 60 frames per second (60 fps), presenting a clear and realistic HD video, vividly showing the expressions and movements of people.
Noise Reduction Tech
Low noise CMOS effectively ensures an ultra-high signal-to-noise ratio of the output video. Advanced 2D + 3D noise reduction technology is used to further reduce noise while ensuring image clarity.
High-precision stepper motor and precision motor drive controller to ensure that the head running smoothly, and with low noise.

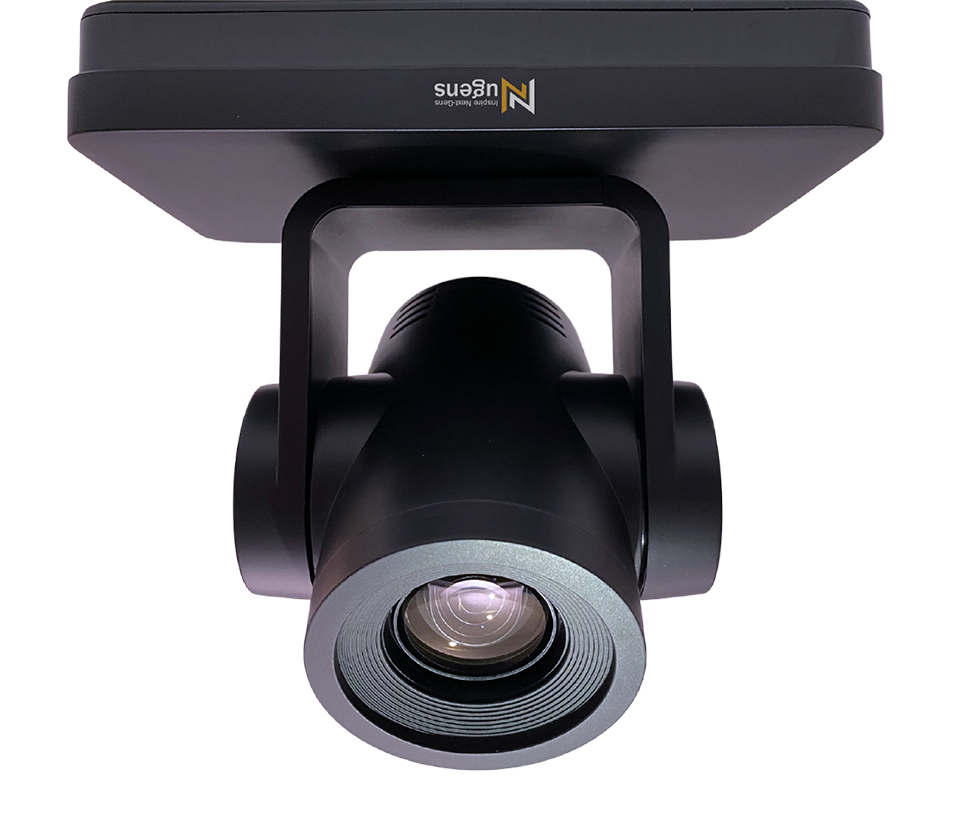

Built-in Gravity Sensor
Supports the automatic image flip function, making it simple to set up and use in engineering.

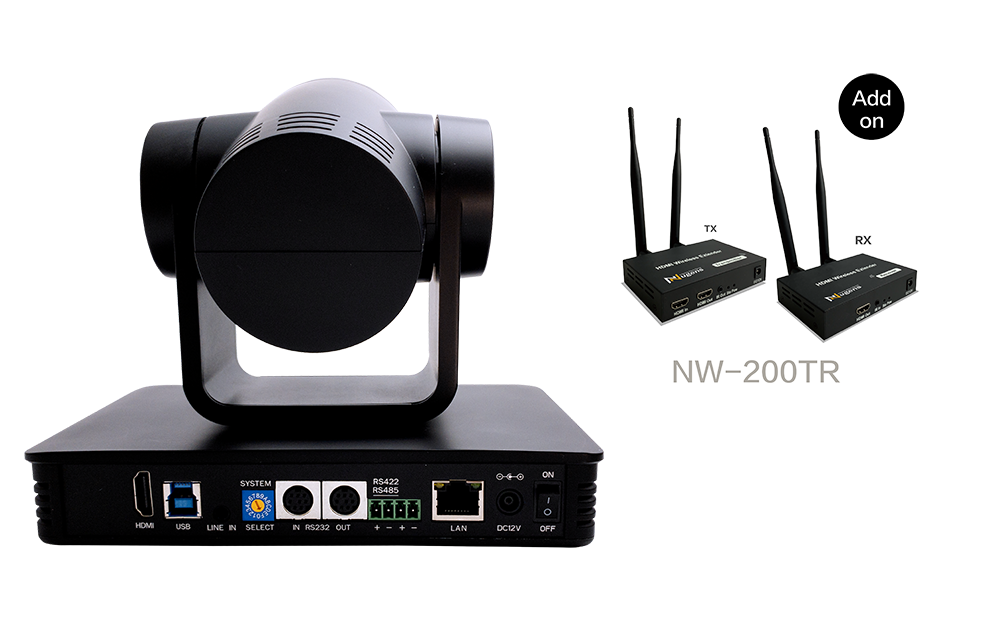

Video Output Interfaces
Support HDMI, SDI, USB3.0, LAN support audio and video output at the same time; LAN interface supports POE power, USB3.0 support dual stream, SDI support in 1080P @60 fps format transmission up to 100 meters.
Compatible with Mainstream Conference Software
Support current mainstream video conferencing and live streaming platforms, such as YouTube, Facebook, Zoom, WebEx, Google Meet, Microsoft Teams, Skype, Line, WeChat.

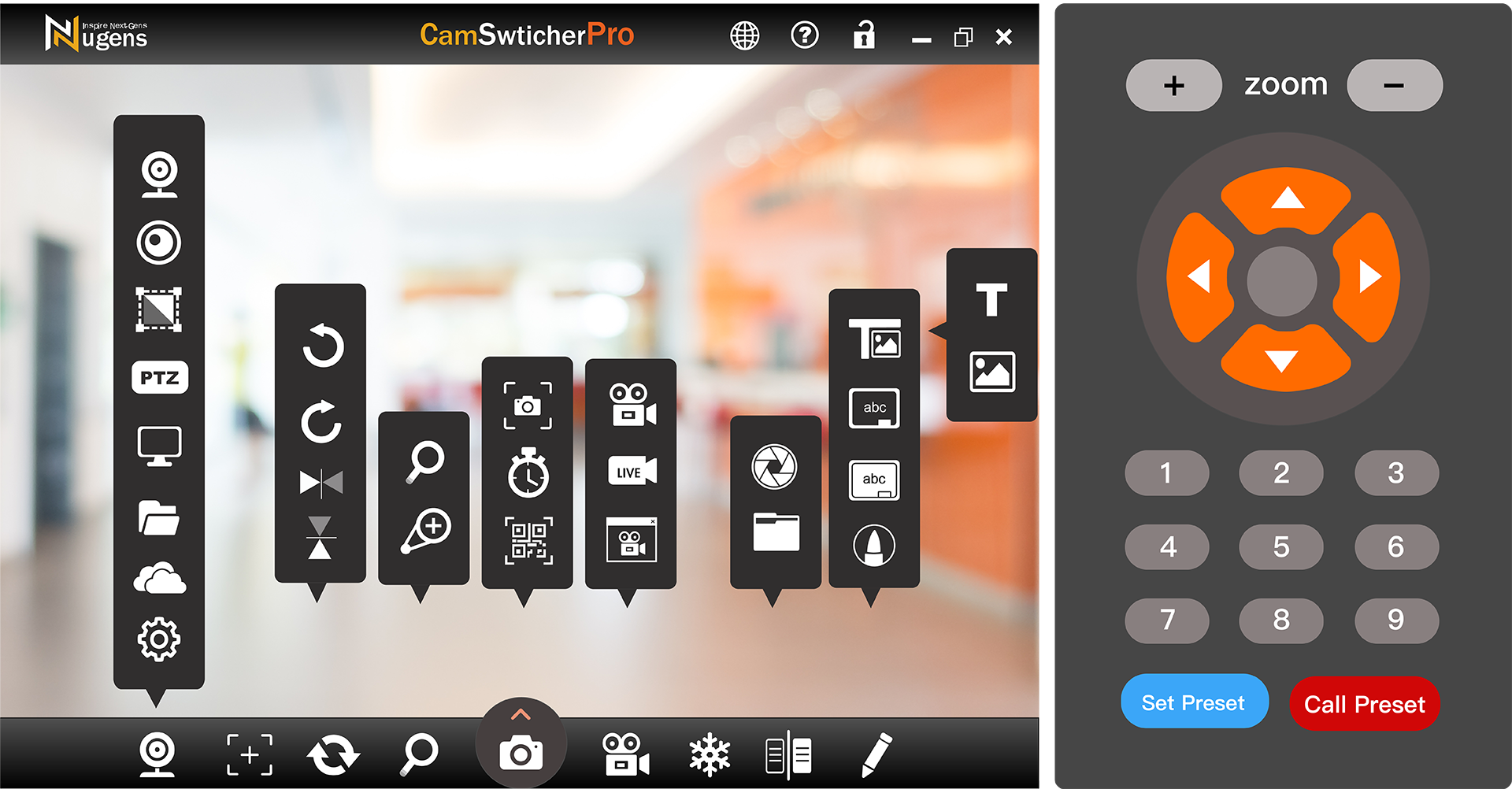

Powerful and Complete
Snapshot / Video Recording / Livestream / Conference / Whiteboard / Document Camera
e-Learning / Conferencing / Video Tutorial / Live Stream / e-Education

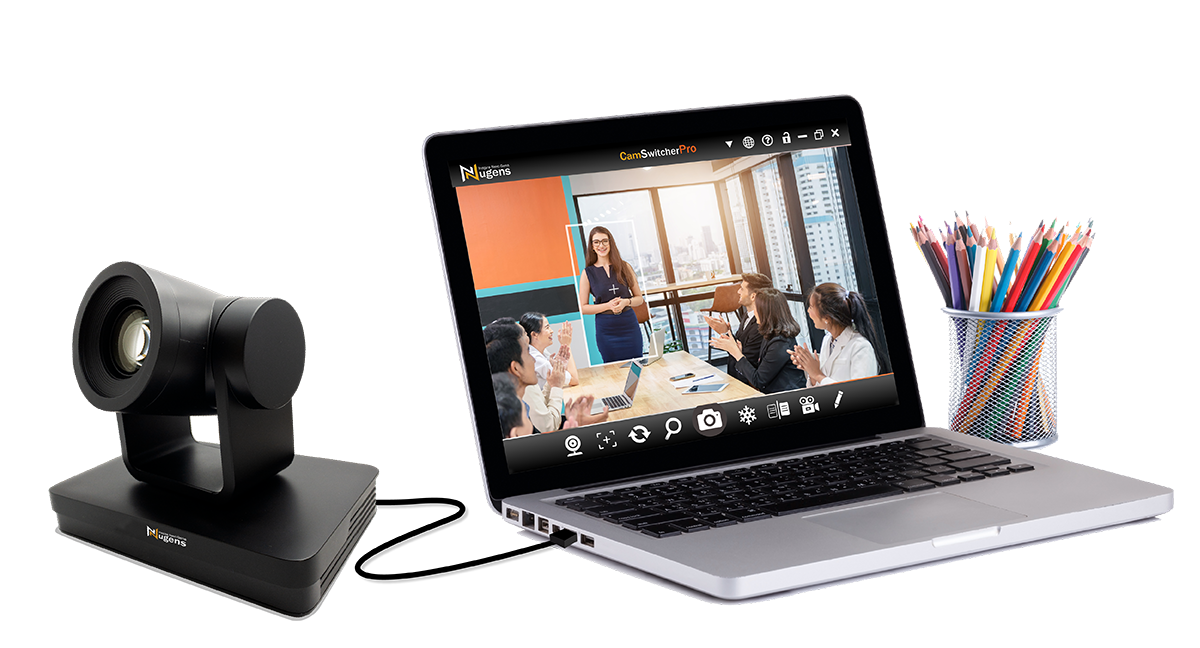

- Large preview window with user-friendly graphical interface.
- Able to choose preferred resolution for preview and settings – Support 4K Ultra-HD
- Capture HD images, HD videos, Time-Lapse, Picture-in-Picture and Burst.
- Time-Lapse Comparison, Annotation and Animated Title
- Support RTMP Live Stream (YouTube or Facebook)
- Built-in Whiteboard and Blackboard
- Support Screen-Sharing and Virtual Camera
- Supported Operating System | Windows and macOS

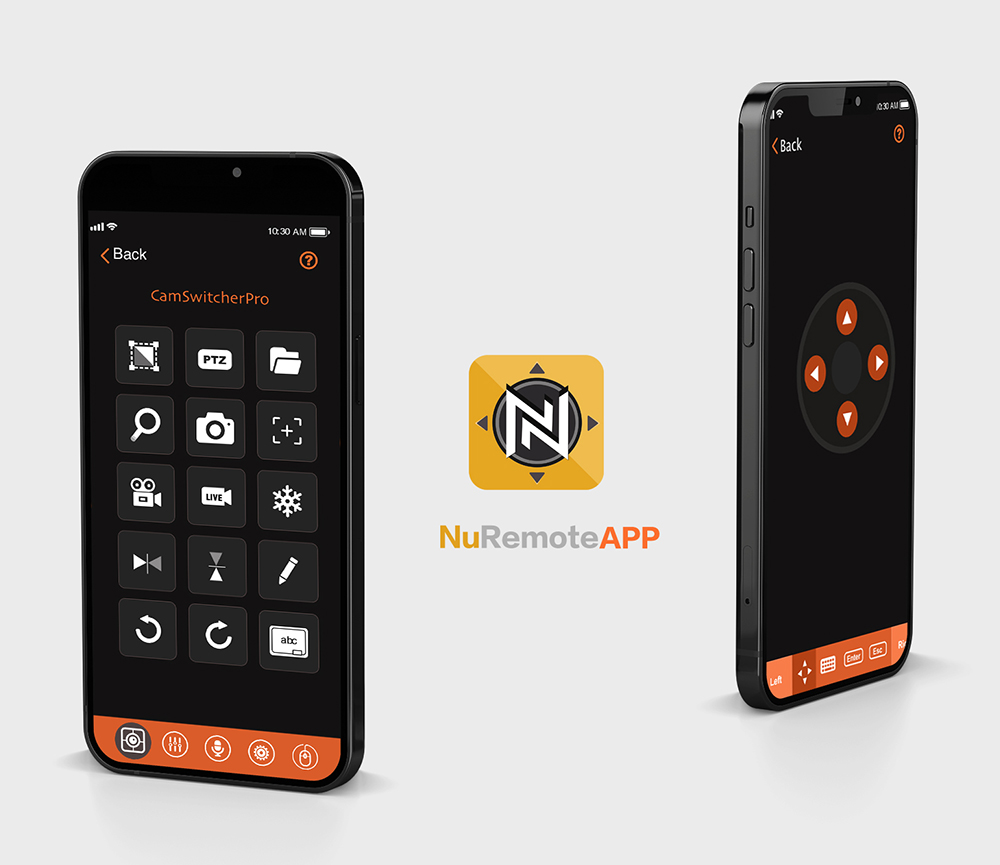

With the NuRemoteApp, you can control the PC via mobile phone or tablet and connect to Nugens software such as CamSwitcherPro, and SmartScheduler Advertising Software. The mobile device can remotely control Nugens devices such as PTZ camera, and speakerphone. NuRemoteApp uses Wi-Fi connection technology to install the software and app on the PC and mobile phone, simulate the mouse, keyboard and touchpad, and add shortcut keys such as direction keys, which can remotely control the PC without being limited by distance and angle. In this way, you can directly use your mobile phone or tablet to take pictures, video, resolution adjustment, image rotation, zoom, freeze images, brush annotation and other functions in the video conference, making the conference control more flexible.
Suitable for Various Applications
VCM20A is suitable for various fields and purposes, such as conferencing, online learning for schools, educational lecture, live broadcasting.
|Sensor||1/2.8-inch-hight quality HD CMOS sensor|
|Effective Pixels||2.07 MP、16:9|
|HDMI/SDI Video formats||1080P60、1080P50、1080P30、1080P25、720P50、1080P59.94、1080P29.97、720P59.94|
|USB 3.0 output supports video formats including||
|Field of View||3.2°(Narrow Angle)、56°(Wide Angle)|
|Minimum Illumination||0.5Lux(F1.8 AGC ON)|
|Digital NoiseReduction||2D, 3D digital noise reduction|
|Spotlight Mode||Auto, Manual, One-touch focus|
|White Balance Mode||Auto, Manual, One-touch White Balance, Specified Color Temperature|
|Exposure Mode||Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority|
|Aperture Parameters||F1.8 ~ F11、CLose|
|Dynamic Range||Closure, 1 to 8|
|Image Adjustment||Brightness, Chroma, Saturation, Contrast, Sharpness, B&W Mode, Gamma Curve|
|Real-time Tracking||The longest tracking distance can reach 6-7 meters, and can support the speaker to walk at a speed of 3-4 miles|
|Area Tracking||Support setting 4 tracking areas, support horizontal -170°～+170°, vertical -30°～+90° within the setting area|
|Product Interface||HDMI, LAN, USB3.0(B-type port、USB2.0 compatible), LINE-IN, RS232-IN, RS232-OUT, RS422(RS485 compatible), rotary dip code, DC12V power supply, power switch|
|Audio Input||Dual 3.5mm linear inputs|
|Video encoding format||LAN interface: primary stream and secondary stream both support H.265, H.264 USB3.0 interface: main stream support YUY2, MJPG, H264, NV12|
|Audio Compression Format||AAC、MP3、G.711A|
|network interface||110M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output|
RTSP、RTMP、ONVIF、GB/T28181、VISCA OVER IP、IP VISCA、RTMPS、SRT
Support remote upgrade, remote reboot, remote reset
|Control Interface||RS232-IN、RS232-OUT、RS422 compatible with RS485|
|USB Communicatio Protocol||UVC（video communication protocol），UAC（audio communication protocol）|
|Serial Communication Protocol||VISCA / Pelco-D / Pelco-P；baud rate support 115200/38400/9600/4800/2400|
|Power Connector||HEC3800 Power Socket (DC12V)|
|Power Adapter||Input AC110V-AC220V； Output DC12V/2.5A|
|Power consumption of the whole machine||＜12W|
|Horizontal control speed||0.1°~100°／sec|
|Pitch control speed||0.1°/s to 45°/s|
|Preset Bit Speed||Horizontal: 100°/s, Pitch: 45°/s|
|Number of Preset Bits||User settable up to 255 preset positions (10 for remote control)|
|Product Size||81mm (L) x 115mm (W) x 149mm (H)|
|What is in the box?||Power transformer, RS232 control cable, USB 3.0 transmission cable, Remote controller, User manual, Wall mount kit|
