Nugens VCM1000/VCM3X

10X/3X Optical PTZ Conference Camera

  • FREE CamSwitcherPro – A video tool software developed by Nugens.
  • Support wirelessly controls the camera via CamSwitcherPro App.
  • Selected the top image sensor – Sony, export high quality images.
  • 10x/3X optical zoom, the highest resolution can reach 1920*1080, effective pixels 2.07M.
  • By using the high-precision drive mechanism makes the pan-tilt rotation quieter, stable and can quickly adjust to the specified position.
  • Professional PTZ (Pan-Tilt-Zoom) - the vertical adjustment angle is about 30°, the horizontal adjustment angle is about 170°.
  • Support 10 preset positions with provided remote controller.
  • Support VISCA, PELCO-D and RS422/RS485 control
  • Built-in 1/4-20UNC, support all kinds of standard camera tripods.
  • Windows 10 USB plug & play design – no driver needed.
  • Compatible with most of the video conferencing platforms, such as Google Meet, Microsoft Teams, Zoom, Skype, WebEx, Polycom, and WhatsApp.
  • Suitable for small and medium-sized meeting rooms

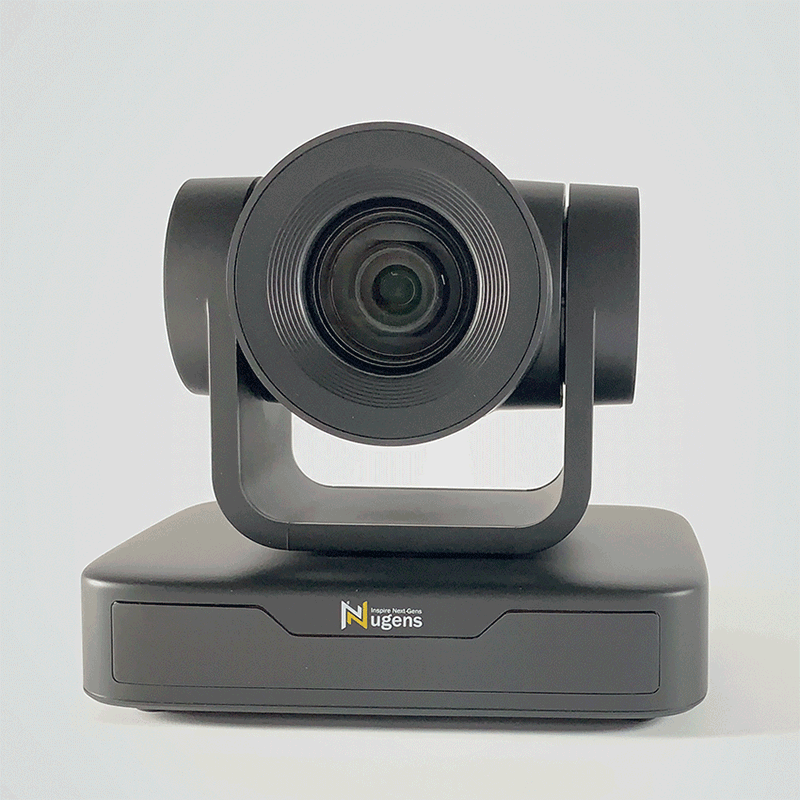

VCM1000 10X Optical PTZ Conference Camera

VCM1000/VCM3X Selected the top image sensor – Sony, export high quality images.10x optical zoom, the highest resolution can reach 1920*1080, effective pixels 2.07M.Professional PTZ (Pan-Tilt-Zoom) - the vertical adjustment angle is about 30°, the horizontal adjustment angle is about 170°. Suitable for small and medium-sized meeting rooms

Preset Positions

Preset Positions

You can preset 10 positions with different angles, when there is different people in the meeting or event that need to give a speech, Nugens VCM1000 is able to change the position immediately and adjust the angle with Zoom In/Out function.

Optical Zoom

Optical Zoom

With 10X/3X optical zoom lens, you can zoom in for a bigger image with excellent image quality.

HD Resolution

HD Resolution

Using selected premium sensor of Sony, providing full HD 1080P; the effective pixel is 2.07M, provide better image capture and output, allowing you to have a higher quality picture.

VCM1000視訊

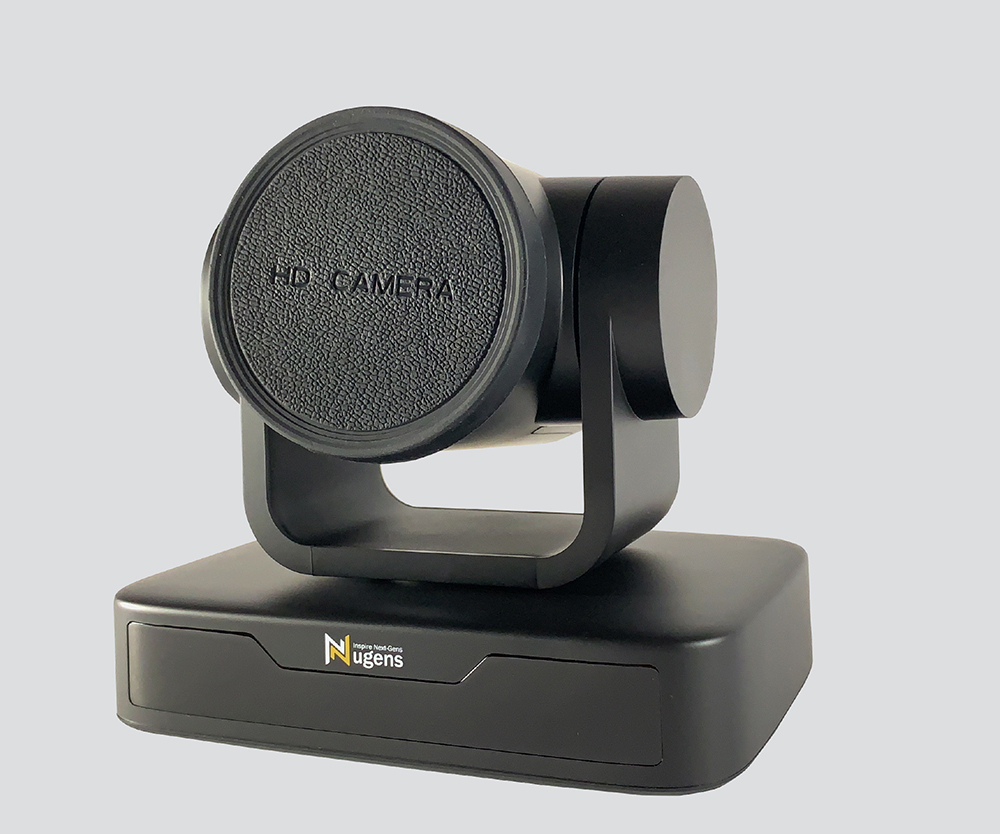

Anti-Peep Cover/Ultra Quiet Design

When speaking to video call, we are worried about being peeped by hackers. The Nugens 10X/3X PTZ camera is equipped with a lens protection cover that can be covered when not in use to prevent peeping.
By using a high-precision stepping drive mechanism makes the pan-tilt rotation quieter, stable and can quickly rotate to the appointed position.

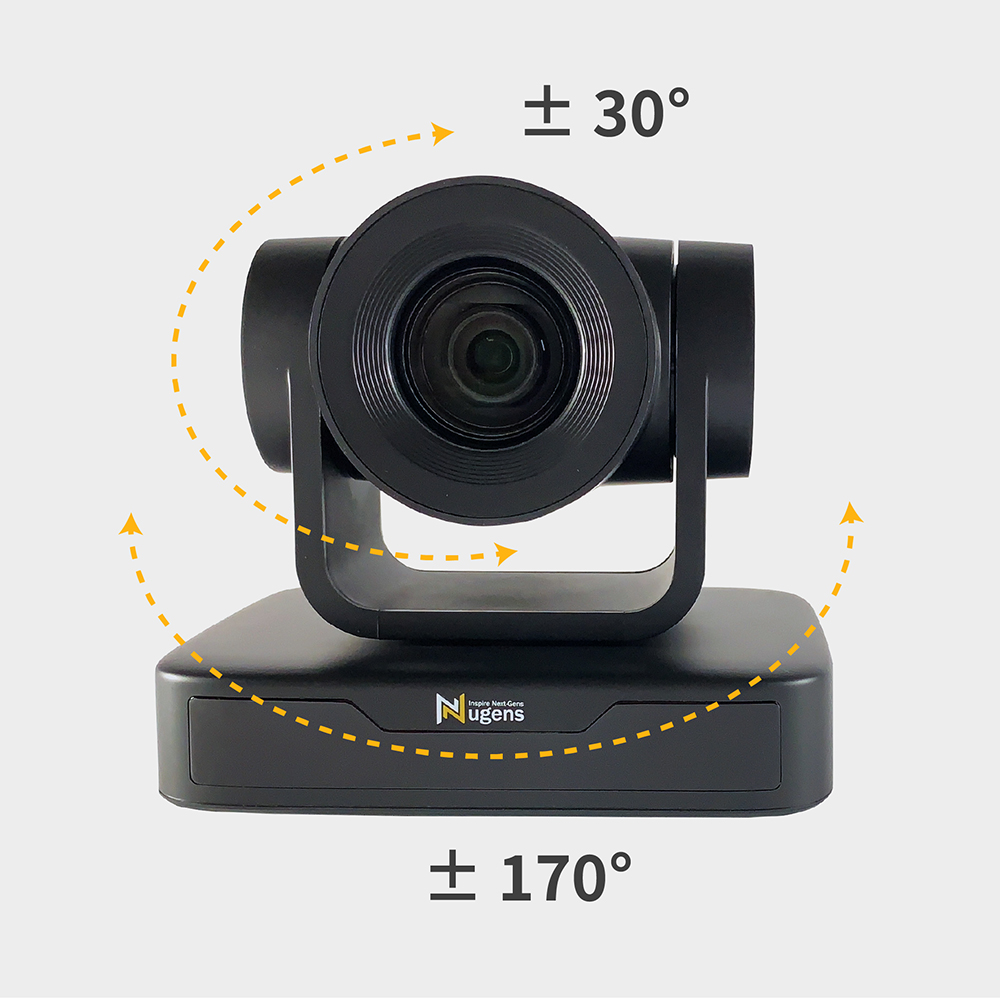

Professional PTZ - the vertical adjustment angle is ± 30°, the horizontal adjustment angle is ±170°.

VCM1000 Viewing angle
VCM1000 Spin
model

Lightweight & Portable

16 x 12 x 14cm | 0.8kg
It has a slimmer design that takes up less overall space. Support multiple installation options: simply put it on a table, installed on a tripod or hang it upside down from the ceiling.

Mainstream Conferencing Software

Compatible Mainstream Conferencing Software

Supports current mainstream video conferencing and live broadcast platforms, such as Youtube, Facebook, Zoom, Webex, Google Meet, Skype, Line, Wechat and other software.

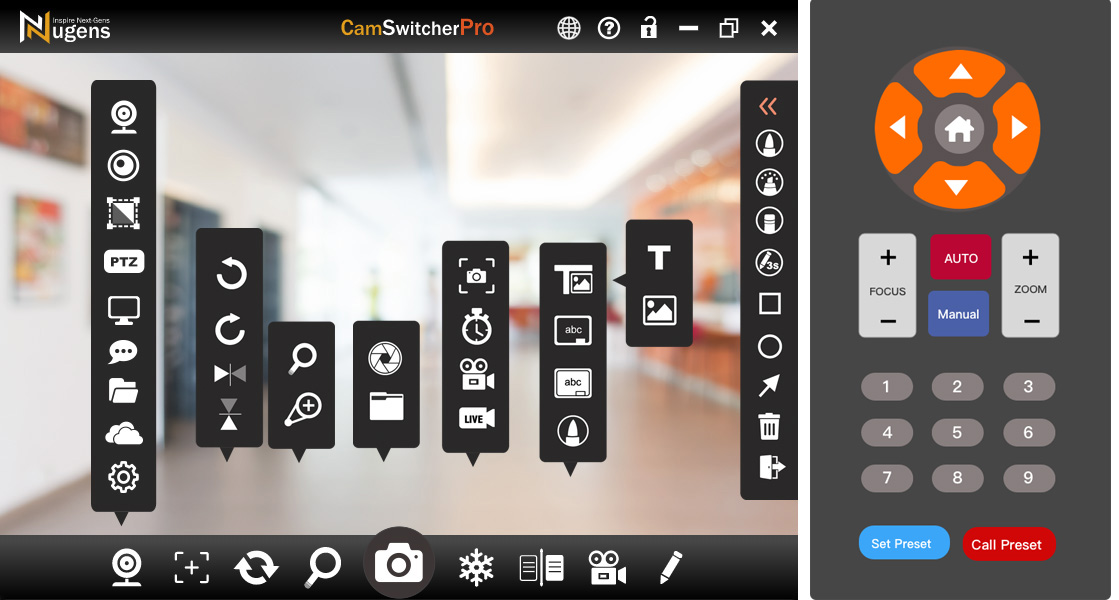

CamSwitcher NuRemote

Remotely Control

With the NuRemoteApp, you can control the PC via mobile phone or tablet and connect to Nugens software such as CamSwitcherPro, and SmartScheduler Advertising Software. The mobile device can remotely control Nugens devices such as PTZ camera, and speakerphone. NuRemoteApp uses Wi-Fi connection technology to install the software and app on the PC and mobile phone, simulate the mouse, keyboard and touchpad, and add shortcut keys such as direction keys, which can remotely control the PC without being limited by distance and angle. In this way, you can directly use your mobile phone or tablet to take pictures, video, resolution adjustment, image rotation, zoom, freeze images, brush annotation and other functions in the video conference, making the conference control more flexible.

Download

Powerful and Complete

Snapshot / Video Recording / Livestream / Conference / Whiteboard / Document Camera
e-Learning / Conferencing / Video Tutorial / Live Stream / e-Education

Large preview window with user-friendly graphical interface.
  • Able to choose preferred resolution for preview and settings – Support 4K Ultra-HD
  • Capture HD images, HD videos, Time-Lapse, Picture-in-Picture and Burst.
  • Time-Lapse Comparison, Annotation and Animated Title
  • Support RTMP Live Stream (YouTube or Facebook)
  • Built-in Whiteboard and Blackboard
  • Support Screen-Sharing and Virtual Camera
  • Supported Operating System | Windows and macOS
  • Windows10 Download
    macOs Download

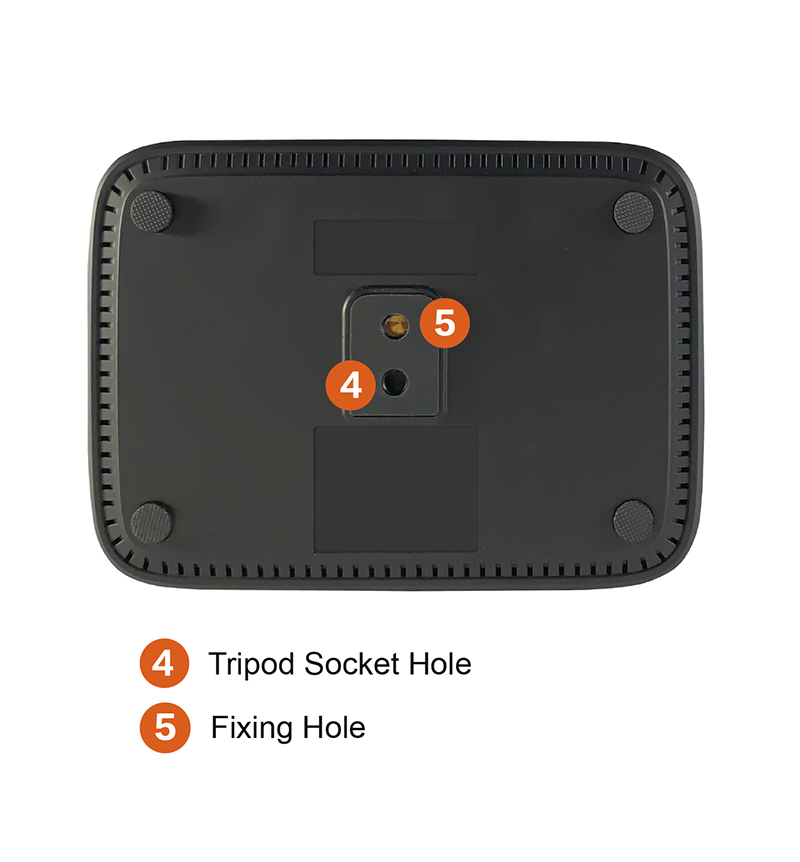

    SCHEMATIC VIEW

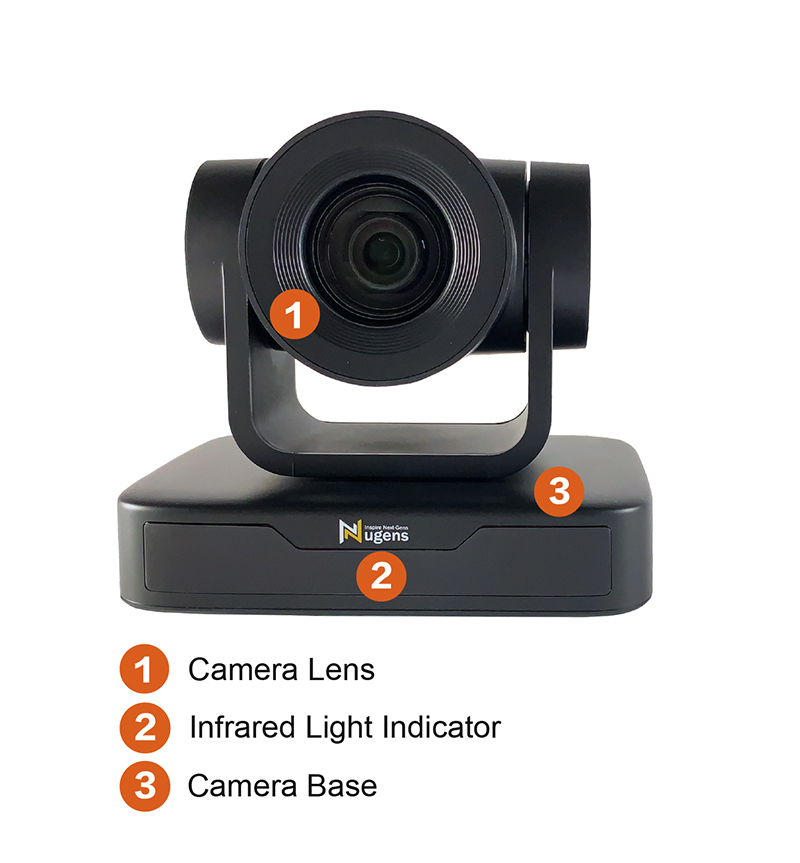

    VCM1000 SCHEMATIC VIEW
    VCM1000 SCHEMATIC VIEW
    VCM1000 SCHEMATIC VIEW

    Specifications

    Camera Parameter

    Model VCM3X VCM1000
    Sensor 1/2.9-inch-hight quality HD CMOS sensor
    Effective Pixels 2.07 MP、16:9
    Video Format
    MJPEG: YUY2:
    1920*1080 1280*720p
    1280*720p 640*480
    800*600 640*360
    720*480
    640*360
    320*240
    View Angel 34.1°~85 8.8°~66
    F Value f=3.35mm~10.05mm f=4.34mm ~ 41.66mm
    AV F1.7~3.0 F1.85-F2.43
    Optical Zoom 3x 10x
    White Balance Auto/Manual/One Push(2400K~7100K)
    Focus Auto/Manual
    Aperture Auto/Manual
    BLC on/off
    Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
    SNR >55dB
    DNR 2D & 3D DNR
    Minimum Illumination 0.5 Lux (F1.8, AGC ON)

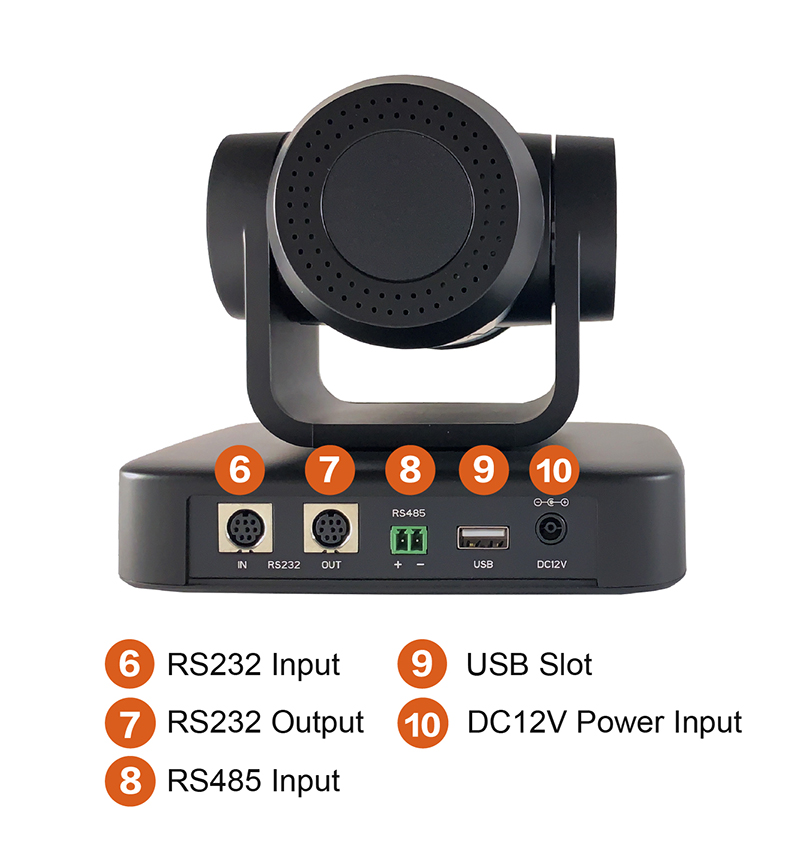

    Input/Output Interface

    Video Interfaces USB2.0 (type A)
    Video Compression Format MJPEG、YUY2、H.264、H2.65
    Control Signal Interface RS232、RS485
    Control Protocol VISCA/PelcoD/Pelco-P
    Power Interface DC12V

    PTZ Parameter

    Pan Rotation -170°~+170
    Tilt Rotation -30°~+30°
    Pan Control Speed 0.1~60°/sec
    Tilt Control Speed 0.1~40°/sec
    Preset Speed Pan:48°/sec,Tilt:38°/sec
    Preset Number 255 presets (10 presets by remote controller)

    Other Parameter

    Input Voltage 12V
    Input Current 0.42A(max)
    Consumption 5W(max)
    Store Temperature -40°~+70°
    Store Humidity 20%~90%
    Working Temperature -10°~+50°
    Working Humidity 20%~80%
    Product Dimension 156.8mm x 112.6mm x 139.5mm
    Product Weight 1kg
    Accessory Power Supply,Remote Controller,USB cable,Ceiling mount bracket
